Rugged hospital grade edison plug designed for being attached to our installation-grade family of power supplies or anywhere a standard wall outlet plug is required.
Hospital Grade Valise Plug, 15 A Amperage, 125 V Voltage, White or Black Color, 0.3 in. to 0.660 in. Cord
- Industry-standard 15A Hubbell Connector
- Straight Blade Commercial Specification Grade and Commercial Hospital Grade GFCI Duplex Receptacles
- Nylon material housing. 18-12 AWG copper stranded or solid conductor terminal accommodation.

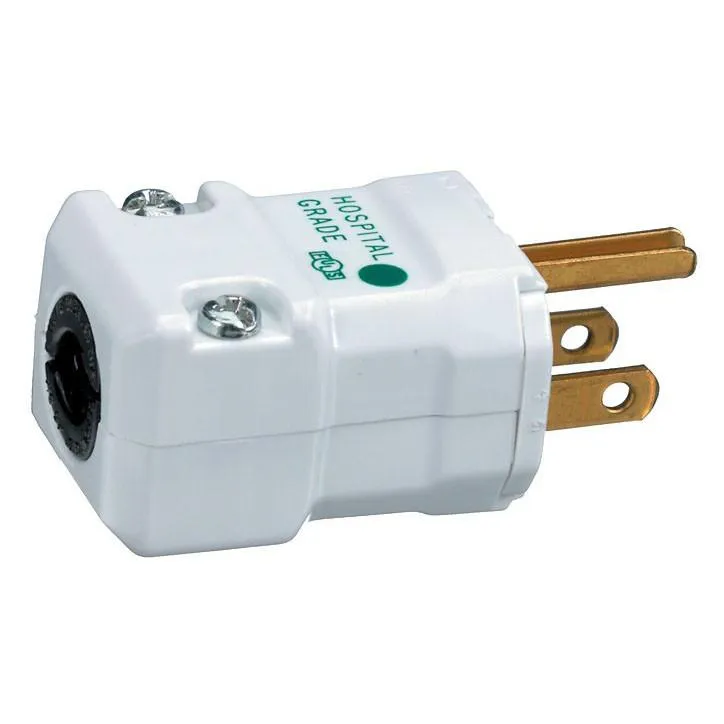

- HBL8115V (White)

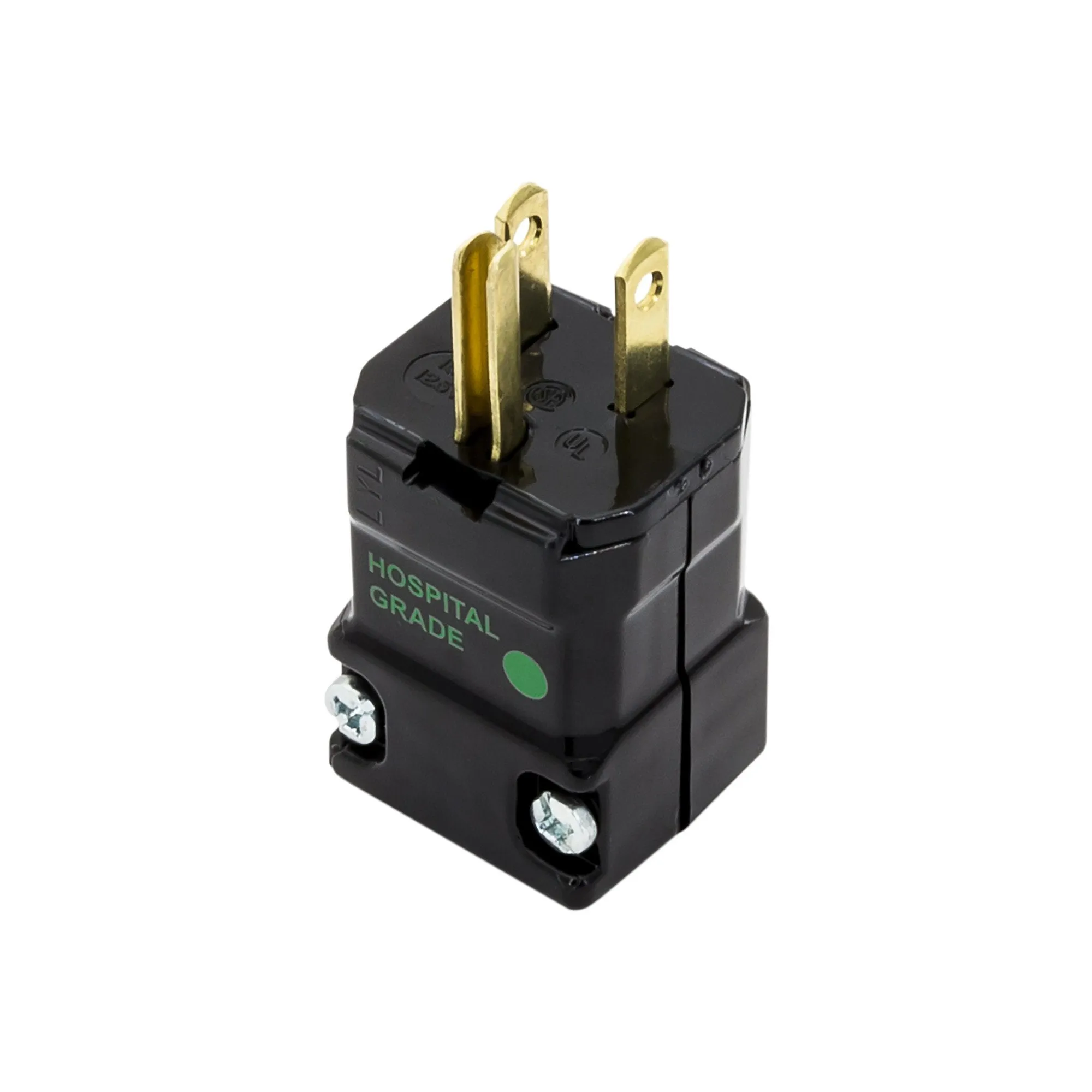

- HBL8115VB (Black)
SPECIFICATIONS
| Agency Approvals | : | UL, CSA |
| Amperage | : | 15 A |
| Brand/Series | : | Valise Series |
| Color | : | White / Black |
| Contact Type | : | Pin |
| Current, Rating | : | 15 A A |
| Diameter, Cord | : | 0.3 to 0.66 |
| Dielectric Voltage | : | 2000 V (Min.) |
| Flammability | : | UL 94V2 |
| Grade | : | Hospital |
| IP Rating | : | IP20 |
| Material, Blades Contact | : | Brass |
| Material, Contact | : | Brass |
| Material, Ground Screw | : | Stainless Steel |
| Material, Housing | : | Nylon |
| Material, Terminal Screw | : | Stainless Steel |
| Material, Wire Clamps | : | Steel |
| NEMA Type | : | 5-15P |
| Number of Contacts | : | 3 |
| Number of Poles | : | 2 Pole |
| Primary Type | : | Straight Blade |
| Temperature, Operating, Maximum | : | 75 C |
| Temperature, Operating, Minimum | : | -40 C |
| Terminal, Accommodation | : | 18-12 AWG Copper Stranded or Solid Conductor |
| Termination | : | Screw |
| Type | : | Cable Plug |
| Voltage, Rating | : | 125 V V |
| Weight | : | 0.15 lbs. |
| Wire, AWG | : | #18-#12 |
| UPC | : | 78358501908 |
